Introducing wraith-donk

We’ve taken the BBC’s responsive screenshot comparison tool Wraith and put a donk on it!

Gideon Goldberg

Published on Tuesday, 25 February 2014

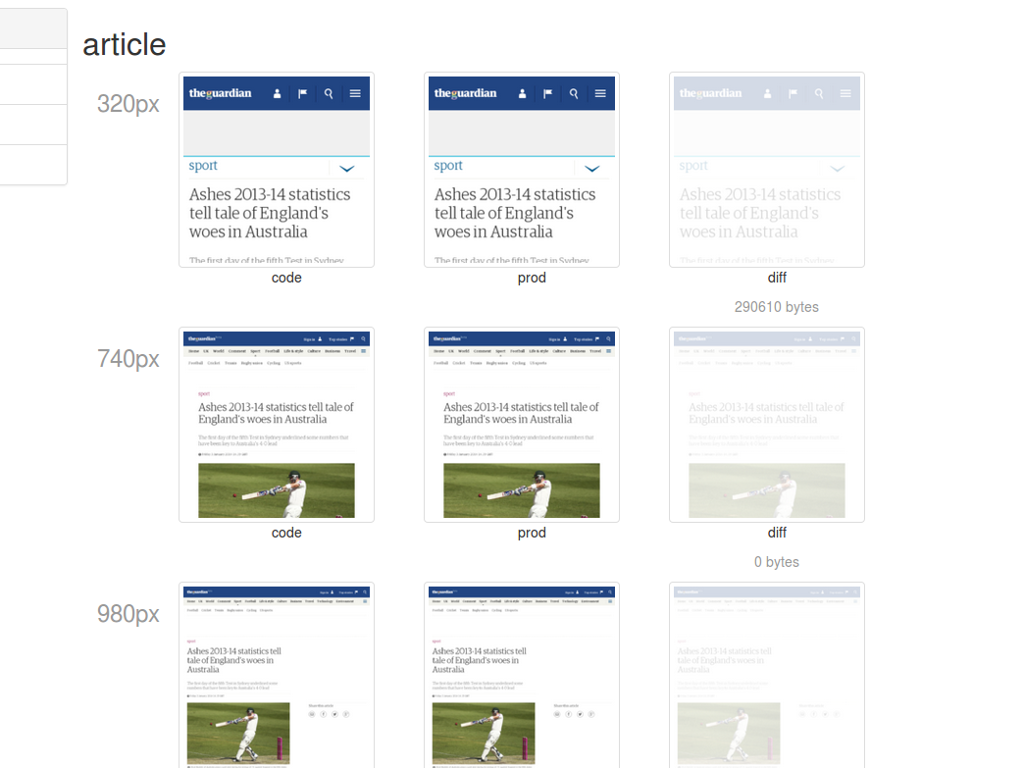

A Wraith gallery of the Guardian responsive site
A Wraith gallery of the Guardian responsive site Photograph: Guardian

Background

Back in July 2013 the BBC released the command line based screenshot comparison tool Wraith. It is a mash-up of a number of existing tools (ImageMagick, PhantomJS with a dash of Ruby) which makes comparing versions of responsive websites using screenshot comparison techniques a cinch.
That’s great but in order to integrate it with our developers’ workflow and build pipeline we had to wrap it in something that could be deployable in a Ruby Gem and be accessible by hitting a URL. So we came up with wraith-donk; a simple web server for Wraith. We think the workflow for using it is easy peasy, plus it’s trivial to include in any build pipeline that accepts a URL as a trigger (but currently it’s non-blocking and non-breaking):

Workflow

In the project.yaml file, first set the target browser and device.

Then set some project paths.

Next, define the breakpoints of your responsive design and your DEV and PROD URLs.

Finally define the level of fuzziness that will trigger a notification email and the email SMTP server that will do the honours.

Here is one we made earlier:

#Headless browser option
browser:
  webkit: "phantomjs"
  # gecko: "slimerjs"

device:
  base: firefox
  compare: firefox


#If you want to have multiple snapping files, set the file name here
snap_file: "snap.js"

# Type the name of the directory that shots will be stored in
directory:
  - 'public/frontend'
# Add only 2 domains, key will act as a label
domains:
  prod: "http://www.theguardian.com"
  code: "http://m.code.dev-theguardian.com"


#Type screen widths below, here are a couple of examples
screen_widths:
  - 320
  - 740
  - 980
  - 1300

#Type page URL paths below, here are a couple of examples
paths:
  article: "/politics/2014/feb/13/ministers-two-two?view=mobile"
  liveblog: "/environment/2014/feb/20/are-humans-causing-more-sinkholes?view=mobile"
  gallery: "/duracell-power-me/gallery/geocaching-in-pictures?view=mobile"


#Amount of fuzz ImageMagick will use
 fuzz: '20%'

#Set the number of days to keep the site spider file
spider_days:
  - 10

#WraithDaemon
wraith_daemon:
  report_location: "http://your-wraith-donk-server:8080"
  notifications:
    enabled: true
    smtp_host: "your.smtp.server"
    to: "notification@example.com"
    from: "notification@example.com"
    subject: "Wraith done"
  port: 7777






A notification email from wraith-donk
A notification email from wraith-donk Photograph: Guardian

Wraith-Donk, I mean seriously, what does that even mean?

There is a musical genre based on the theory that any song can be improved with the addition of a Donk, this is defined by Urban Dictionary thus:

to add a repeating ‘donk’, or ‘clunk’ sound (onomatopoeic) to a piece of music when writing or remixing it, typically on the offbeat,characteristic of bassline/scouse house/niche & NRG.

The Blackout Crew came up with a song to illustrate this called: ‘Put a Donk on it’

So we believe that just as any dance tune can be improved with a bangin’ donk, any Wraith implementation can be improved with the addition of wraith-donk.
_
Credits: Development on wraith-donk was done primarily by Márton
(meza) Mészáros
and Rex Cooper working with the Next Gen Web team. The name was my idea…_

Updated 24th March 2014 to reflect the fact that ‘Put A Donk On It’ did not originate in the film Le Donk & Scor-zay-zee.
